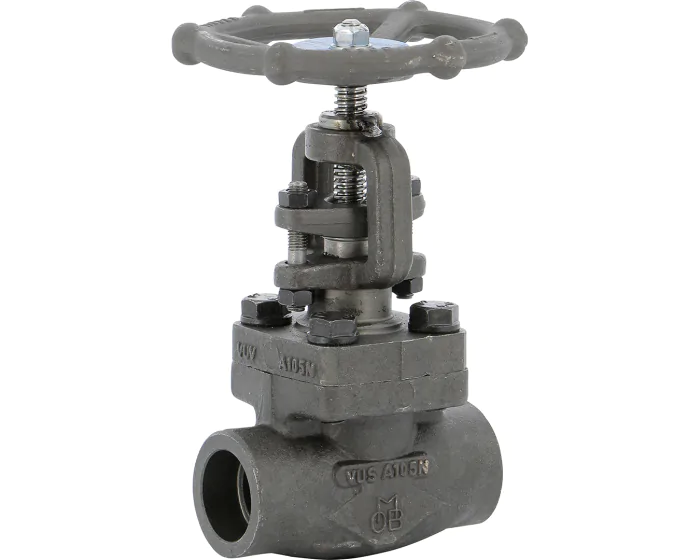

The globe valve series 412 from the forged valve range, in forged steel A105N standard bore, welding SW with bolted bonnet, Class 800, TRIM 8, with stainless steel rising stem, for the petroleum and chemical industries.
| Specification | Value |
|---|---|
| DN inches NPS | 3/8'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Carbon steel ASTM A105N |
| Construction standard | ISO 15761 - API 602 V8 |
| CE risk category | III Module H |
| TRIM | TRIM 8 |
| Brand | OMB |
| Tightness test standard | API 598 |
| Bonnet | Bolted |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 410 |
| ATEX compatible | Yes |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 80.0 |
| Sealing | Metal / Metal |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 1.2 |
| Body material | Carbon steel ASTM A105 N |
| Bore | Standard |
| Packing gland | Yes |
| PS (bar) | 136 |
| Connections | Welding SW |
| Seats | Stainless steel ASTM A276 Tp 410 stellite |
| TS max (°C) | 425 |
| TS min (°C) | -29 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| Type of stem | Rising |
| CE | Yes |
| Plug material | Stainless steel ASTM A276 AISI 410 |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding SW Carbon steel ASTM A105 N Standard DN10 - 3/8'' | 412010 | S1007271 |
€53.96
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Standard DN15 - 1/2'' | 412015 | S1007272 |
€53.96
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Standard DN20 - 3/4'' | 412020 | S1007273 |
€59.99
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Standard DN25 - 1'' | 412025 | S1007274 |
€77.73
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Standard DN32 - 1''1/4 | 412032 | S1007275 |
€118.94
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Standard DN40 - 1''1/2 | 412040 | S1007276 |
€159.83
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Standard DN50 - 2'' | 412050 | S1007277 |
€172.39
(excl. btw)
|
add to cart |
